Pentax 17 Half-Frame 35mm Film Camera

The Pentax 17 offers a unique half-frame 35mm format, featuring a compact 17 x 24mm recording area that sets it apart from traditional full-frame cameras. This distinctive format provides several advantages:

• With frames occupying half the space on the film roll, you can capture twice as many exposures compared to full-frame cameras. A 36-exposure roll yields approximately 72 exposures.

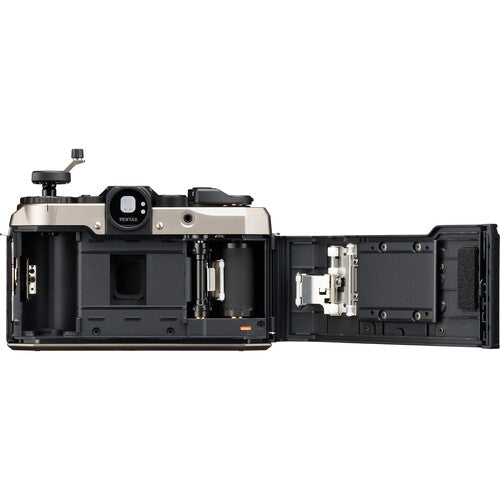

• The horizontal film movement results in a vertically oriented image area. The viewfinder is optimized for vertical shooting, enhancing handling and ease of use.

Ease of Use and Features

The Pentax 17 is designed for simplicity, functioning as a true point-and-shoot camera with an accurate autoexposure system. Key features include:

• Manual ISO/ASA settings ranging from 50 to 3200 and exposure compensation up to +/- 2 EV.
• Mode dial offering options for flash on/off, Auto mode for flash based on lighting conditions, Program auto with flash, slow-sync with flash, and additional settings such as bulb and slow shutter speeds.
• Special Bokeh mode prioritizing the f/3.5 maximum aperture for shallow depth of field effects.

Design and Components

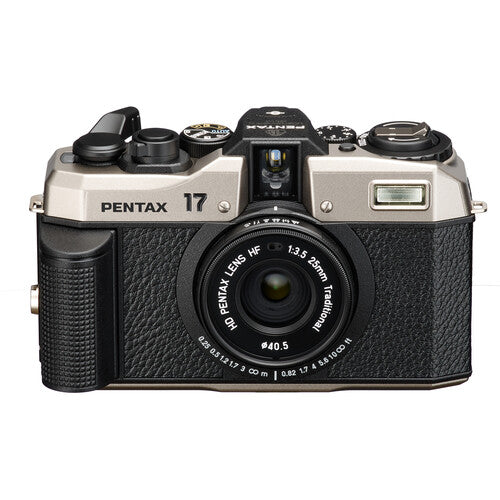

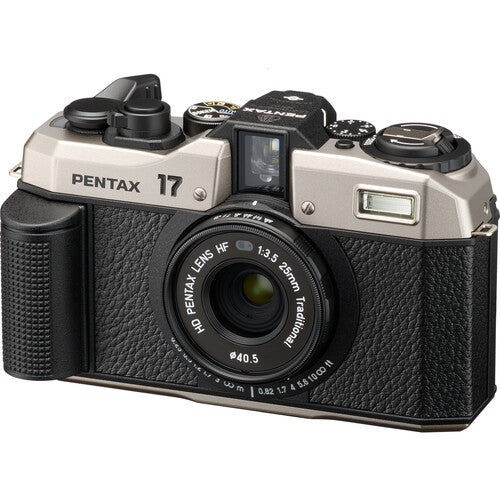

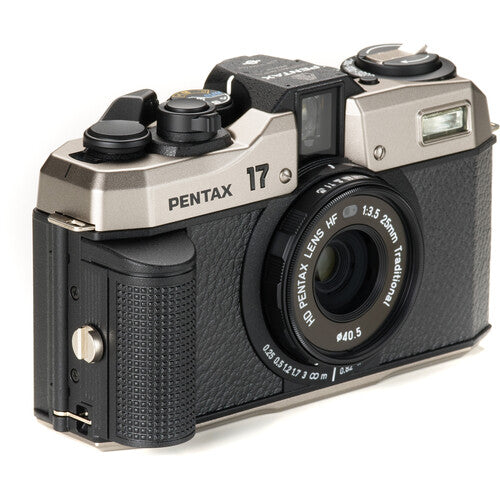

The camera's top plate features a manual film rewind knob, shutter release button surrounded by an On/Off switch, film advance lever, and a film counter window. The viewfinder is centrally positioned with brightline frame lines and a close-up compensation notch.

The lens incorporates a built-in light meter and supports 40.5mm filters, automatically adjusting for filter factors during autoexposure. A front-mounted built-in flash with a guide number of 20' (ISO 100) and LED indicators for recharge and readiness are included.

Additional Features

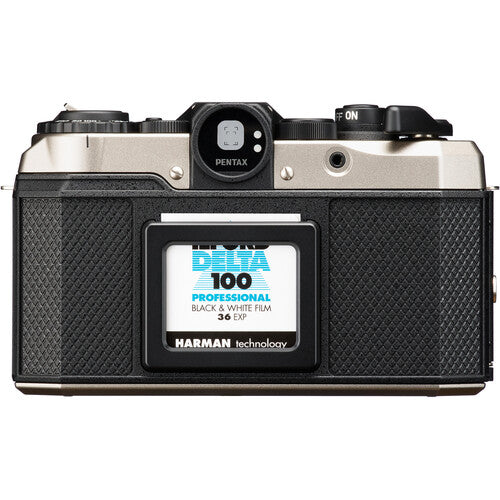

• Rear slot for notes or film box pieces.
• 2.5mm port for optional CS-205 cabled remote shutter release.

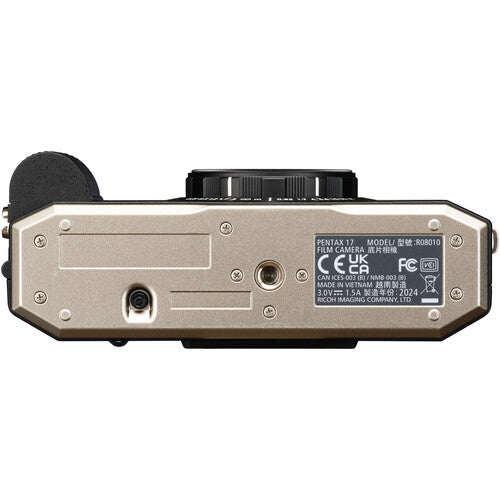

• 1/4"-20 tripod mount and film rewind button on the bottom.

HD PENTAX HF 25mm f/3.5 Traditional Lens

The fixed prime lens offers the field of view equivalent to a 37mm full-frame lens, featuring Pentax's HD anti-reflective coating for enhanced contrast and clarity. It employs a manual six-stage zone focusing method:

• Macro/Flower: 0.82' / 0.25 m
• Close-Up/Knife & Fork: 1.7' / 0.5 m
• Single Person: 4' / 1.2 m
• Two People: 5.6' / 1.7 m
• Group of People: 10' / 3 m
• Mountain/Infinity: ∞

Legacy-inspired Design

Drawing from Pentax's heritage, the Pentax 17 integrates classic elements from past models:

• Film rewind knob from Pentax LX
• ISO dial from Pentax SP
• Flash and shutter release from Pentax KP
• Lens housing from Pentax Espio Mini
• Front logo text from Pentax 67

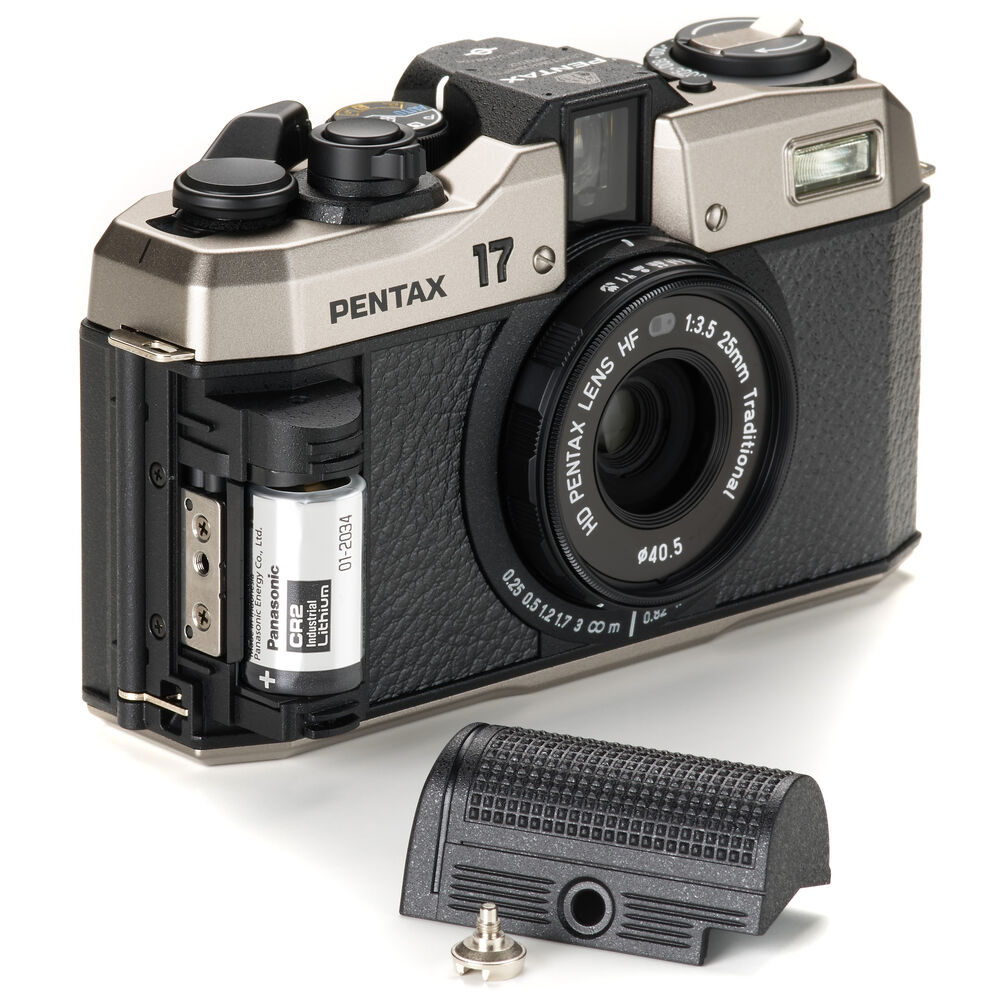

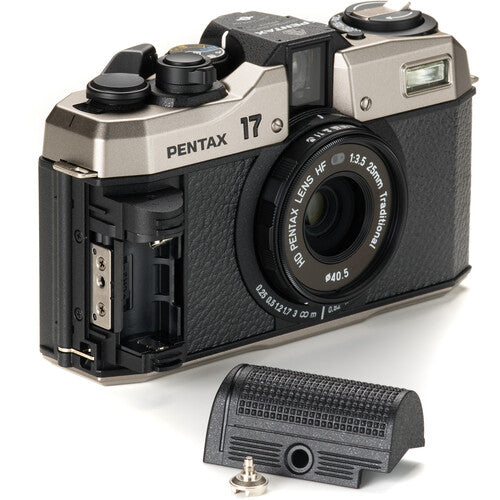

• Knurled battery cover from Pentax DA WR series
• Film advance lever from Pentax Auto 110
• Magnesium alloy top plate from a special edition LX
• Classic Pentax logo in the viewfinder with Asahi AOCo logo and film plane indicator from Pentax DSLRs.

In summary, the Pentax 17 combines innovative half-frame film technology with ergonomic design and a rich legacy of Pentax craftsmanship, ideal for enthusiasts seeking distinctive photographic experiences.
